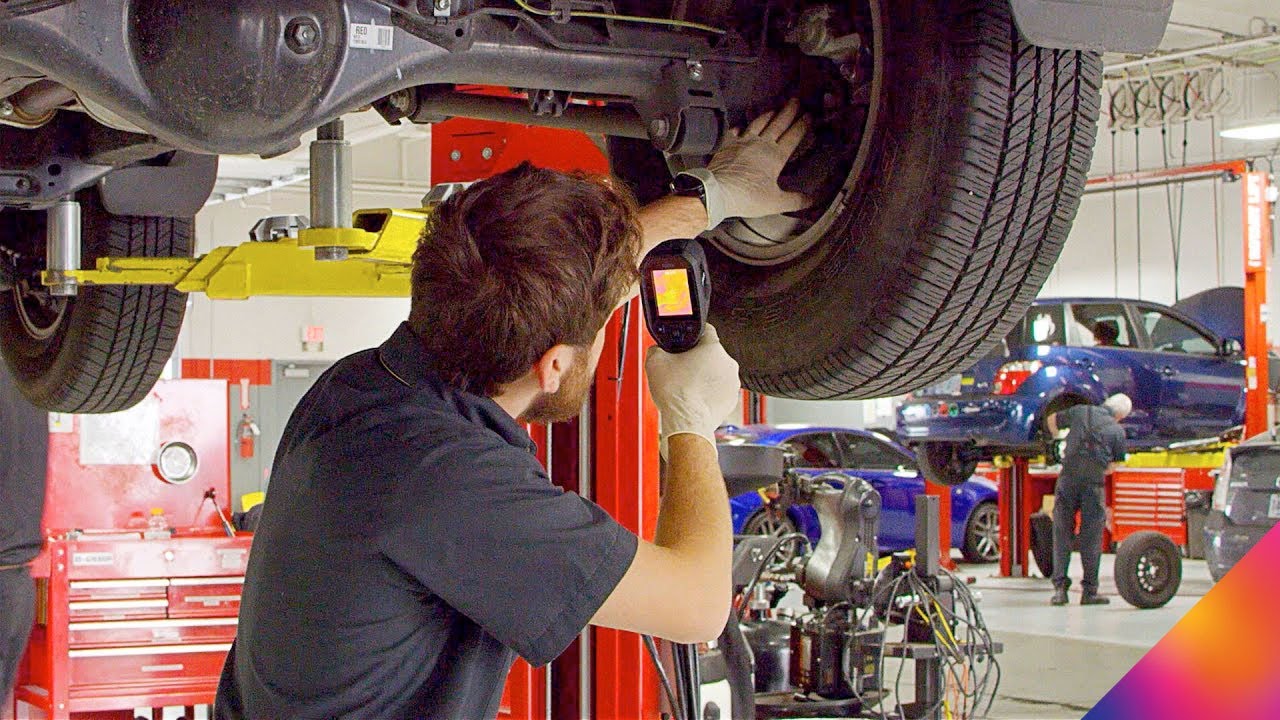

The FLIR TG275 is designed specifically for automotive maintenance and repair technicians who want to accelerate diagnostic procedures and avoid undetected problems. Featuring IGM™ (Infrared Guided Measurement), this diagnostic tool combines non-contact temperature measurement and thermal imaging to help you troubleshoot repairs, spot potential faults, and record images that will reassure your customer that the problem has been fixed. This affordable thermal imager is ideal for diagnosing problems in relays and switches, parasitic drain on the battery, drive train components, HVAC system (vents), and much more.
Designed for Automotive Maintenance/Repair Professionals
Identify more problems, faster
19,200 pixel IR camera and temperature range up to 550°C (1022°F) surpass the limitations of spot IR thermometers
Superior image quality, affordable price
Get the sharp visual detail of FLIR MSX®, displayed on a vibrant 2.4-inch screen
Rugged and Reliable
Tough, drop-tested design with an IP54 enclosure that protects the camera from dirt, dust, and oil
Specifications
Overview
- Accuracy
- ±1.5°C (2.7°F) for temperatures 50°C to 100°C (122°F to 212°F); up to ±3°C (±5.4°F) for -25°C to 50°C (-13°F to 122°F) and 100°C to 550°C (212°F to 1022°F)
- Built-in Illuminator LED
- 100 lumens, 6500°K flashlight
- Detector Type
- Focal plane array (FPA), uncooled microbolometer
- Field of view (FOV)
- 57° × 44°
- FLIR Tools
- Compatible
- IR Resolution
- 160 × 120 pixels
- Laser
- Class 1 laser indicates the temperature measurement area; button-activated
- Object Temperature Range
- -25°C to 550°C (-13°F to 1022°F)
- Thermal Sensitivity/NETD
- <70 mK
- Warranty
- FLIR 2-10 warranty
Connections & Communications
- Interface
- USB 2.0, Bluetooth
- Storage Media
- eMMC 4 GB
- USB
- USB Type-C: data transfer/power
- USB - Standard
- USB 2.0 High Speed
Environmental
- Drop test
- Designed for 2 m (6.6 ft)
- EMC
- • EN 61000-6-3 • EN 61000-6-2 • FCC 47 CFR Part 15 Class B
- Emissivity Correction
- Yes: 4 preset levels with custom adjustment of 0.1–0.99
- Encapsulation
- IP 54 (IEC60529)
- Humidity (Operating and Storage)
- 0-90% RH (0-37°C (32-98.6°F)), 0-65% RH (37-45°C (98.6-113°F)), 0-45% RH (45-55°C (113-131°F))
- Operating Temperature Range
- • Up to 10 min. with flashlight on, -10°C to 90°C (14°F to 194°F) • Up to 2 min. with flashlight on, -10°C to 115°C (14°F to 239°F)
- Radio Spectrum
- • ETSI EN 300 328 • FCC Part 15.249 • RSS-247 Issue 2 • EN 301 489-1:2011 • EN 301 489-17:2009
- Safety
- CE/CB/EN61010/UL
- Shock
- 25 g (IEC 60068-2-27)
- Storage Temperature Range
- -30°C to 55°C (-22°F to 131°F)
- Tripod Mounting
- 1/4 in.-20 on handle bottom
- Vibration
- 2 g (IEC 60068-2-6)
Imaging & Optical
- Automatic Image Adjustment
- Yes
- Built-in Digital Camera
- Yes
- Color palettes
- Iron, Rainbow, White hot, Black hot, Arctic, Lava
- Detector Pitch
- 12 µm
- Digital Camera Resolution/FOV
- 2 MP, 71° × 56° FOV
- Digital image enhancement
- Yes
- Focus
- Focus free
- Gallery
- Yes
- Image Adjustment
- Automatic
- Image Frequency
- 8.7 Hz
- Image Modes
- • MSX® (Multi Spectral Dynamic Imaging) • Visual with temperature reading
- Minimum Focus Distance
- 0.3 m (0.98 ft.)
- Minimum Measurement Distance
- 0.26 m (0.85 ft)
- Spectral Range
- 7.5–14 µm
Measurement & Analysis
- Center spot
- Yes
- IR Temperature Resolution
- 0.1°C (0.2°F)
- IR Thermometer Measurement Acquisition
- Continuous scanning
- Languages
- Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, simplified Chinese, Spanish, Swedish, traditional Chinese, Turkish
- Set-up Commands
- • Local adaptation of units, language, date, and time formats • Screen brightness (high, medium, low) • Gallery, deletion of images
- Spot Meter
- Center spot on/off
Meter Data
- Camera size (L x W x H)
- 210 mm × 64 mm × 81 mm (8.3 in × 2.5 in × 3.2 in)
- Camera weight incl battery
- 0.394 kg (13.9 oz)
- Cover Glass Material
- Optical-grade silicon
- Display
- 320 × 240 pixel, 2.4 in color LCD
Physical
- Weight [battery included]
- 0.394 kg (13.9 oz.)
Power
- Battery charge life
- 30 days minimum
- Battery operating time
- 5 hours continuous scanning, 4.5 hours with laser on
- Battery Type
- Rechargeable Li ion battery
- Battery voltage
- 3.7 V
- Charging system
- Battery is charged inside the camera
- Charging Temperature
- 0°C to 45°C (32°F to 113°F)
- Charging Time
- 4 hours to 90%, 6 hours to 100%
- Power Management
- Adjustable: off, 5 min., 15 min., 30 min.
Shipping Information
- Includes
- TG275, printed documentation, wrist strap lanyard, USB A to USB C cable, carry pouch
Storage Media
- Image Storage Capacity
- 4 GB for storage of up to 50,000 pictures
- Memory Expansion
- NA
- Memory Type
- Internal
- Saved image format
- JPEG
