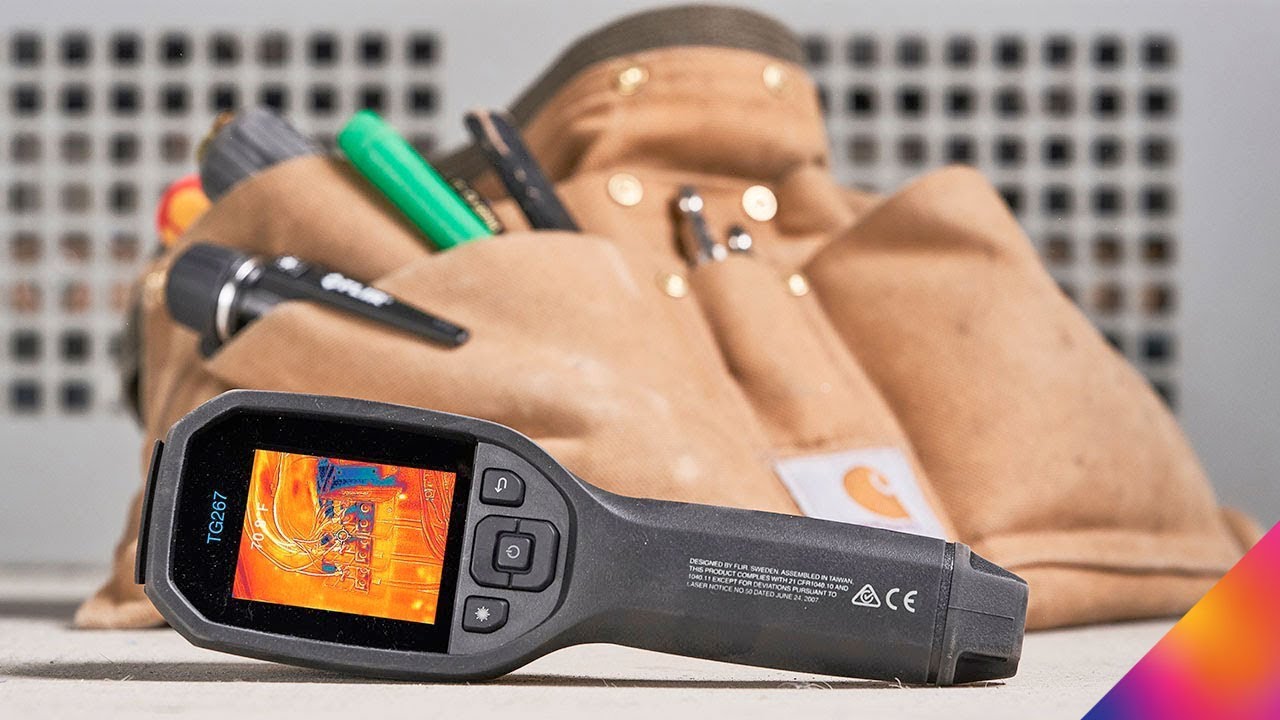

FLIR TG267 Thermal Camera
sold in last hours
Quantity Remaining:
100 of 200 Sold
Order in the next
to get it by
Viewing This Product
Free Shipping
4 Great reasons to buy from us:
The FLIR TG267 takes you beyond the limitations of single-spot IR thermometers to both see and evaluate the hot and cold spots that can indicate serious issues. Ideal for commercial electrical, facility maintenance, and HVAC applications, this advanced thermal camera with a brilliant 2.4 inch screen reduces diagnostic time while simplifying repair and maintenance reporting. Patented FLIR MSX® (Multi-Spectral Dynamic Imaging) enhancement improves image clarity by embossing visual scene details on full thermal images, providing added context to help you accurately target potential faults and troubleshoot repairs. Record images to monitor maintenance history and reassure your customer that problems have been resolved.
Designed for Affordable Diagnostic Thermal Imaging
Identify Problems Quickly
Measure a wide range of temperatures from -25°C to 380°C (-13°F to 716°F) with a true 160 × 120 IR pixel imager (19,200 pixels)
Produce Crisp Thermal Images
Display and record MSX®-enhanced thermal images or visual images with temperature readings
Work with Confidence in Rugged Environments
Work safely and worry-free knowing that the IP54 enclosure can withstand a 2-meter drop and protect against dust and water
Specifications
Overview
- Accuracy
- ±1.5°C (2.7°F) for temperatures 50°C to 100°C (122°F to 212°F); up to ±3°C (±5.4°F) for -25°C to 50°C (-13°F to 122°F) and 100°C to 380°C (212°F to 716°F)
- Built-in Illuminator LED
- 100 lumens, 6500 K flashlight
- Detector Type
- Focal plane array (FPA), uncooled microbolometer
- Field of view (FOV)
- 57° × 44°
- FLIR Tools
- Compatible
- IR Resolution
- 160 × 120 pixels
- Laser
- Class 1 laser indicates the temperature measurement area; button-activated
- Object Temperature Range
- -25°C to 380°C (-13°F to 716°F)
- Thermal Sensitivity/NETD
- <70 mK
- Warranty
- FLIR 2-10 warranty
Compliance & Certifications
- Certifications
- CE, CB, RCM, IEC60825-1, FDA, UL, CEC, NRCan
Connections & Communications
- Interface
- USB 2.0, Bluetooth
- Storage Media
- eMMC 4 GB
- USB
- USB Type-C: data transfer/power
- USB - Standard
- USB 2.0 High Speed
Environmental
- Drop test
- Designed for 2 m (6.6 ft)
- EMC
- • EN 61000-6-3 • EN 61000-6-2 • FCC 47 CFR Part 15 Class B
- Emissivity Correction
- Yes: 4 preset levels with custom adjustment of 0.1–0.99
- Encapsulation
- IP 54 (IEC60529)
- Humidity (Operating and Storage)
- 0-90% RH (0-37°C (32-98.6°F)), 0-65% RH (37-45°C (98.6-113°F)), 0-45% RH (45-55°C (113-131°F))
- Operating Temperature Range
- -10°C to 45°C (14°F to 113°F)
- Radio Spectrum
- • ETSI EN 300 328 • FCC Part 15.249 • RSS-247 Issue 2 • EN 301 489-1:2011 • EN 301 489-17:2009
- Safety
- CE/CB/EN61010/UL
- Shock
- 25 g (IEC 60068-2-27)
- Storage Temperature Range
- -30°C to 55°C (-22°F to 131°F)
- Tripod Mounting
- 1/4 in.-20 on handle bottom
- Vibration
- 2 g (IEC 60068-2-6)
Imaging & Optical
- Built-in Digital Camera
- Yes
- Color palettes
- Iron, Rainbow, White hot, Black hot, Arctic, Lava
- Detector Pitch
- 12 µm
- Digital Camera Resolution/FOV
- 2 MP (1600 × 1200 pixels), 71° × 56° FOV
- Digital image enhancement
- Yes
- Focus
- Focus free
- Gallery
- Yes
- Image Adjustment
- Automatic
- Image Frequency
- 8.7 Hz
- Image Modes
- • MSX® (Multi Spectral Dynamic Imaging) • Visual with temperature reading
- Minimum Focus Distance
- 0.3 m (0.98 ft)
- Minimum Measurement Distance
- 0.26 m (0.85 ft)
- Spectral Range
- 7.5 - 14 µm
Measurement & Analysis
- Center spot
- Yes
- IR Temperature Resolution
- 0.1°C (0.2°F)
- IR Thermometer Measurement Acquisition
- Continuous scanning
- Languages
- Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, simplified Chinese, Spanish, Swedish, traditional Chinese, Turkish.
- Set-up Commands
- • Local adaptation of units, language, date, and time formats • Screen brightness (high, medium, low) • Gallery, deletion of images
- Spot Meter
- Center spot on/off
Meter Data
- Camera size (L x W x H)
- 210 × 64 × 81 mm (8.3 × 2.5 × 3.2 in)
- Camera weight incl battery
- 0.394 kg (13.9 oz)
- Cover Glass Material
- Optical grade silicon
- Display
- 320 × 240 pixel, 2.4 in color LCD
Power
- Battery charge life
- 30 days minimum
- Battery operating time
- 5 hours continuous scanning, 4.5 hours with laser on
- Battery Type
- Rechargeable Li ion battery
- Battery voltage
- 3.7 V
- Charging system
- Battery is charged inside the camera
- Charging Temperature
- 0°C to 45°C (32°F to 113°F)
- Charging Time
- 4 hours to 90%, 6 hours to 100%
- Power Management
- Adjustable: off, 5 min., 15 min., 30 min.
Shipping Information
- Includes
- TG267, printed documentation, wrist strap lanyard, USB A to USB C cable, carry pouch
Storage Media
- Image Storage Capacity
- 4 GB for storage of up to 50,000 pictures
- Memory Type
- Internal
- Saved image format
- JPEG
