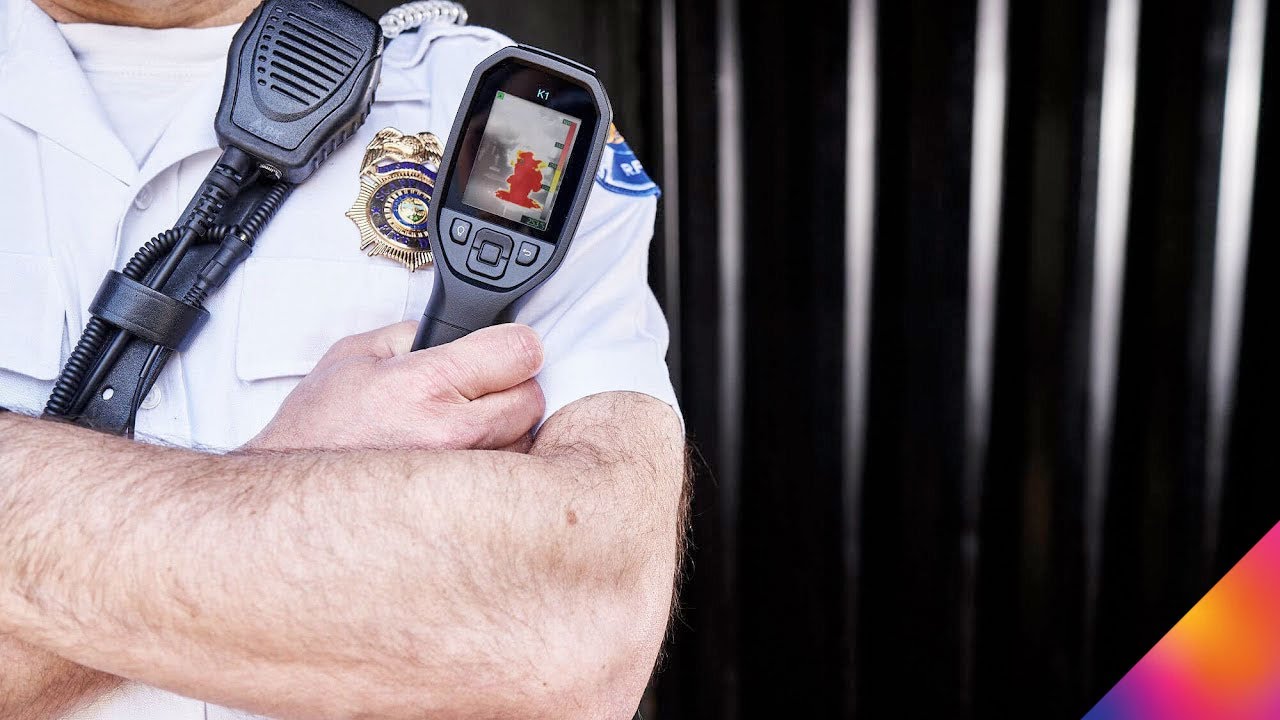

FLIR K1 Situational Awareness Camera
The FLIR K1 is a rugged, compact thermal camera that serves as an extra set of eyes on the fire scene, allowing commanders, officers, and inspectors to quickly complete a thorough 360° assessment in total darkness and through smoke. With a bright, integrated flashlight, the FLIR K1 illuminates the scene to help the user steer and manage the crew more effectively. It also displays 160 × 120 pixel thermal images that help users gain additional situation awareness that is not possible with the naked eye.
Keep Your Eyes on the Fire Scene ENHANCE SITUATIONAL AWARENESS Quickly assess the scene in total darkness, through smoke, and never loose line of sight. DOCUMENT FINDINGS CONVENIENTLY Gather compelling evidence and save up to 10,000 sets of radiometric thermal and visual images for simple reporting. RUGGED AND EASY TO USE The water-resistant K1 withstands a 2-meter drop onto concrete, and is lightweight enough to attach to gear.
Specifications
Overview
- Accuracy
- ±5°C (±9°F) or ±5% in High Gain Mode, or ±10°C (±18°F) or ±10% in Low Gain Mode, for ambient temperatures of 10–35°C (50–95°F)
- Compatible with FLIR software
- FLIR Tools
- Detector Type
- Focal plane array, uncooled microbolometer
- Field of view (FOV)
- 57° × 44°
- Focal Length
- 1.9 mm (0.075 in.)
- IR Resolution
- 160 × 120 pixels
- Multi Spectral Dynamic Imaging (MSX)
- Yes
- Object Temperature Range
- High Gain Mode: –10°C to 140°C (14°F to 284°F) Low Gain Mode: –10°C to 400°C (14°F to 752°F) (at room temperature)
- Packaging Size
- 283 × 148 × 103 mm (11.1 × 5.83 × 4.06 in)
- Thermal Sensitivity/NETD
- <100 mK @ 30°C (86°F)
Connections & Communications
- Interface
- Update from PC devices over USB
- Storage Media
- Internal memory (3.9 GB)
- USB
- USB Type-C
Environmental
- Corrosion
- NA
- Drop
- 2 m (6.6 ft.)
- EMC
- EN 61000-6-2:2005 (immunity) EN 61000-6-3:2011 (emission) FCC Title 47 part 15, subpart B
- Encapsulation
- IP 67 (IEC 60529)
- Humidity (Operating and Storage)
- 0–90% RH (0°C–37°C / 32°F– 98.6°F); 0–65% RH (37°C–45°C / 98.6°F–113°F); 0–45% RH (45°C–55°C / 113°F–131°F)
- Magnetic fields
- EN 61 000-4-8 Class 3
- Operating Temperature Range
- Up to 10 min. with flashlight on, -10°C to 90°C (14°F to 194°F) Up to 2 min. with flashlight on, -10°C to 115°C (14°F to 239°F)
- Shock
- 25 g (IEC 60068-2-27)
- Storage Temperature Range
- –30°C to 55°C (–22°F to 131°F)
- Tripod Mounting
- UNC 1/4"-20
- Vibration
- 2 g (IEC 60068-2-6)
Flashlight
- Beam Angle
- 20°
- Flashlight
- Bright LED flashlight
- LED CCT
- 5700K
- LED CRI
- 70
- Light Output
- 300 lumens
Imaging & Optical
- Built-in Digital Camera
- 320 × 240 pixels
- Depth of Field
- 0.1 m (0.33 ft.), infinity
- Digital Camera FOV
- 71° × 56°, adapts to the IR lens
- f-number
- 1.1
- Focus
- Fixed
- Image Frequency
- 8.7 Hz
- Image Modes
- • TI Basic (White-hot with isotherm) • White-hot • Iron
- Pitch
- 12 µm
- Spatial resolution (IFOV)
- 6.22 mrad
- Spectral Range
- 8–13 µm
- Storage Capacity
- Approx. 10,000 images
Measurement & Analysis
- Automatic Hot Detection
- NA
- Isotherm
- • Yellow coloring 150°C to 250°C • Orange coloring 250°C to 350°C • Red coloring >350°C
- Spot Meter
- Center spot
Meter Data
- Auto Range
- NA
- Camera size (L x W x H)
- 208 × 85 × 65 mm (8.19 × 3.3 × 2.6 in)
- Camera weight incl battery
- 0.41 kg (0.90 lb.)
- Display
- 2.4 in. backlit LCD, 320 × 240 pixels
Power
- Battery capacity
- 3000 mAh
- Battery operating time
- Approximately 5.5 hours in MSX mode; 3.8 hours with torchlight only
- Battery Type
- Li ion
- Battery voltage
- 3.7 V
- Battery weight
- NA
- Charging system
- Battery is charged inside the camera
- Charging Temperature
- 0°C to 45°C (32°F to 113°F)
- Charging Time
- 4 hours to 90%, 6 hours to 100%
- Power Management
- Adjustable
- Safety [power supply]
- Camera: IEC/EN 61010-1 Power supply: UL, CSA, CE, PSE, CCC, and SAA
- Start Up Time
- 15 s
- Start-up time from sleep mode
- TBD
Shipping Information
- Material
- PPSU Silicon rubber Aluminium, cast
Storage Media
- Image Storage
- JPEG files
- Image Storage Capacity
- 4 GB
- Image Storage Mode
- FLIR radiometric JPEGs, visual JPEGs
Keep Your Eyes on the Fire Scene
-
ENHANCE SITUATIONAL AWARENESS
Quickly assess the scene in total darkness, through smoke, and never lose line of sight.
-
DOCUMENT FINDINGS CONVENIENTLY
Gather compelling evidence and save up to 10,000 sets of radiometric thermal and visual images for simple reporting.
-
RUGGED AND EASY TO USE
The water-resistant K1 withstands a 2-meter drop onto concrete, and is lightweight enough to attach to gear.
