FLIR CM94 2000 A AC/DC Utility Clamp Meter
100 of 200 Sold
Viewing This Product
Free Shipping
4 Great reasons to buy from us:
Specifications
Overview
- Backlight LCD
- Yes
- Jaw Opening
- 2.2" (55mm)
- Size [L × W × H]
- 269 × 106 × 51 mm (10.6 × 4.2 × 2.0 in)
- Warranty
- Limited 3 years
Compliance & Certifications
- Certifications
- UL, CE, CSA, RCM
Environmental
- Drop test
- 2 m
- Operating Temperature
- 14 °F to 122 °F (-10 °C to 50 °C)
- Temperature
- Range -58 to 1832 °F (-50 to 1000 °C) / Basic Accuracy ±0.3%
Measurement & Analysis
- AC Current
- Range 200.0, 2000 A / Basic Accuracy ±2%
- AC Voltage (Digital Low Pass Filter-VFD)
- Range 1000 V / Basic Accuracy ±2%
- AC/DC Current
- Range 2000 A / Basic Accuracy ±2%
- AC/DC Voltage
- Range 1000 V / Basic Accuracy ±1.2% / 0.5%
- Capacitance
- Range 60.00 nF, 600.0 nF, 6.000 uF / Basic Accuracy ±2.0% Range 60.00 uF, 6000.0 uF / Basic Accuracy ±3.5% Range 2000 uF / Basic Accuracy ±4%
- Category Rating
- CAT IV-1000 V
- Clamp-On DC Current
- Range 200.0, 2000 A / Basic Accuracy ±2%
- Continuity
- 10 to 200 ?
- Diode
- Range 1 V / Basic Accuracy ±1%
- Frequency
- Range 40.00 Hz to 400.0 Hz (ACA) / Basic Accuracy ±1% Range 50.00 Hz to 400.0 Hz (ACV) / Basic Accuracy ±1%
- LoZ Mode AC Voltage
- Range: 6.000, 60.00, 600.0, 1000 V Basic Accuracy: ±1.5%
- LoZ Mode DC Voltage
- Range: 6.000, 60.00, 600.0, 1000 V Basic Accuracy: ±1.3%
- Resistance
- Range 600.0, 6.000 K, 60.00 K? / Basic Accuracy ±0.5% Range 600.0 K? / Basic Accuracy ±0.8% Range 6.000 M? / Basic Accuracy ±1.2% Range 40.00 M? / Basic Accuracy ±2.3%
- True RMS
- Yes
Meter Data
- Auto Power Off
- 34 minutes
- Display
- 3-5/6 digits 6000 counts. 3-1/2 digits 1999 counts for Hz
- NCV
- Yes
Power
- Battery
- 2 x AA
Improved safety for high-current testing
-
Designed for safety so you can focus on results
Get the right tool for high-current work with a CAT IV 1000 V protection rating and the ability to read up to 2000 A.
-
Functions you need to work faster & smarter
This full-featured clamp meter with True RMS, LoZ, and VFD modes ensures accurate troubleshooting optimized for utility and industrial work.
-
Built with features to simplify your workflow

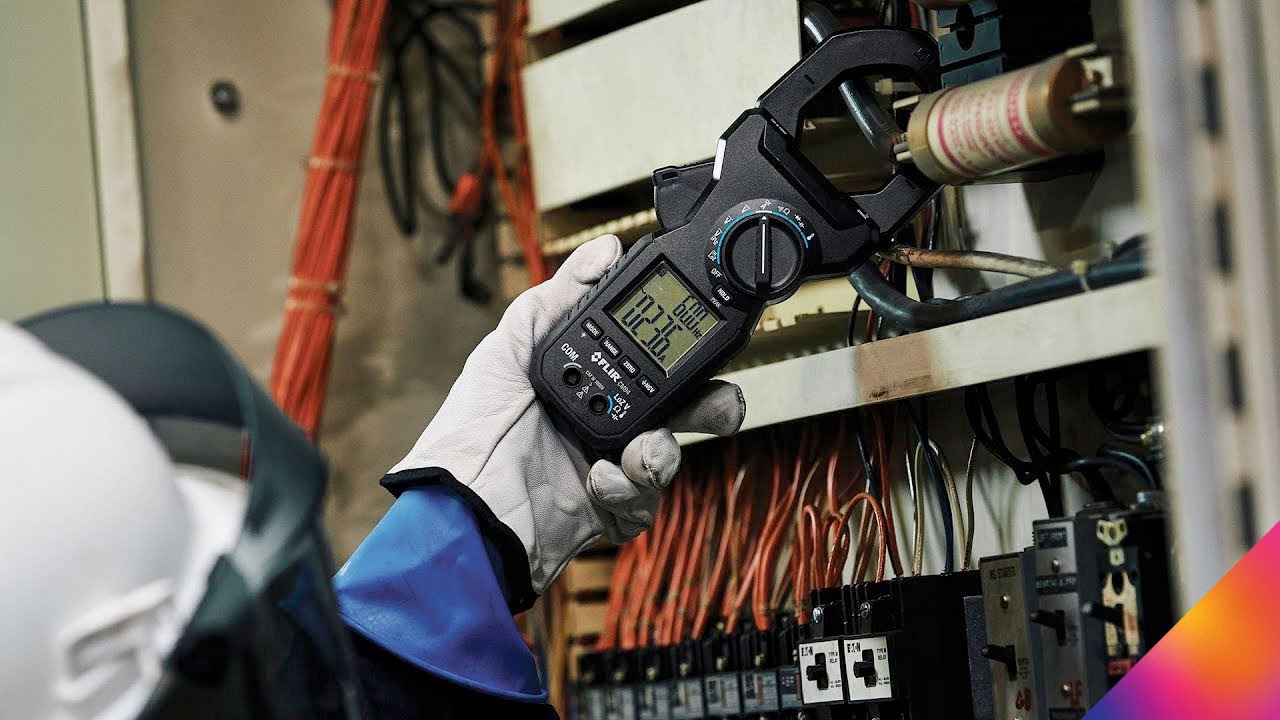

The oversized 55 mm jaw helps the ergonomic FLIR CM94 clamp around large conductors or multiple conductors at once
